What Is a PCD Guide Bar Reamer and Why Is It Essential for High-Precision Guide Bar Machining

A PCD Guide Bar Reamer is a precision cutting tool specifically designed for finishing guide bar holes with extreme accuracy, excellent surface quality, and long tool life. Widely used in chainsaw guide bar manufacturing, this tool leverages the hardness and wear resistance of polycrystalline diamond (PCD) to outperform traditional carbide reamers. This article explores how PCD guide bar reamers work, their advantages, applications, material compatibility, design features, and how manufacturers like Wangdefu deliver consistent, high-performance solutions for modern machining needs.

Table of Contents

• 1. What Is a PCD Guide Bar Reamer?
• 2. Why Guide Bar Hole Accuracy Matters
• 3. How Does a PCD Guide Bar Reamer Work?
• 4. Key Advantages of PCD Guide Bar Reamers
• 5. PCD vs Carbide Reamers: A Detailed Comparison
• 6. Materials Suitable for PCD Guide Bar Reaming
• 7. Structural Design Features of High-Quality PCD Reamers
• 8. Typical Applications in Guide Bar Manufacturing
• 9. How to Choose the Right PCD Guide Bar Reamer
• 10. FAQs About PCD Guide Bar Reamers

1. What Is a PCD Guide Bar Reamer?

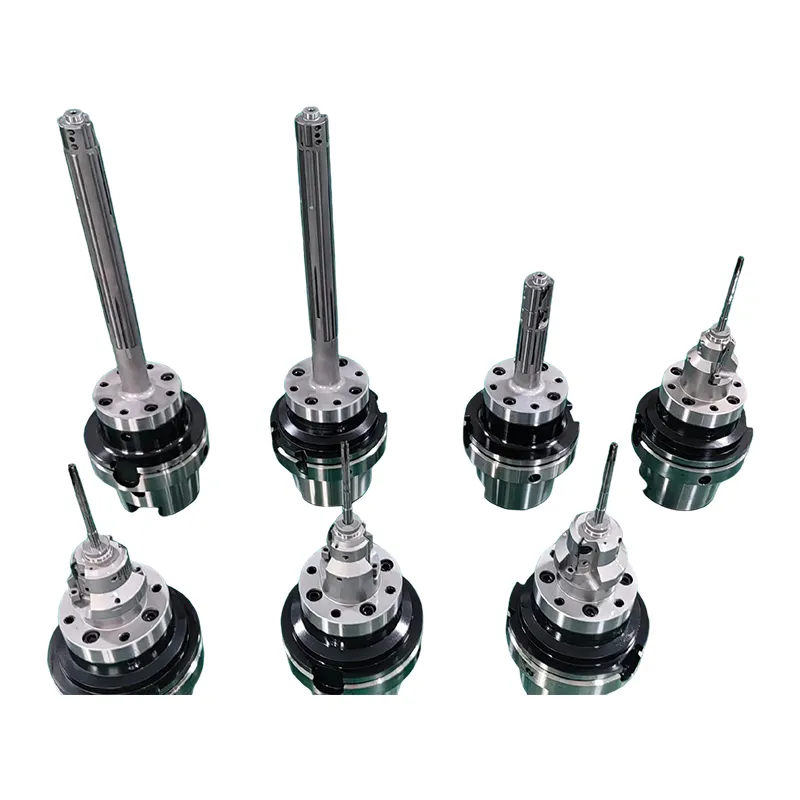

A PCD Guide Bar Reamer is a finishing tool used to precisely size and smooth guide bar holes after drilling or rough machining. Unlike conventional reamers, it incorporates cutting edges made from polycrystalline diamond, one of the hardest and most wear-resistant materials available in industrial machining.

These reamers are engineered to achieve micron-level tolerances while maintaining consistent performance across large production volumes, making them indispensable in automated guide bar manufacturing lines.

Learn more about professional-grade PCD reaming solutions through this PCD Guide Bar Reamer resource.

2. Why Guide Bar Hole Accuracy Matters

In chainsaw guide bars, even minimal deviations in hole diameter, roundness, or surface finish can lead to:

• Poor chain alignment
• Increased friction and heat
• Accelerated wear of chains and sprockets
• Reduced cutting efficiency and service life

Using a PCD guide bar reamer ensures:

• Consistent hole geometry
• Superior surface roughness (Ra ≤ 0.4 μm)
• Stable performance in high-speed production

3. How Does a PCD Guide Bar Reamer Work?

PCD guide bar reamers remove minimal material during the final machining stage. The ultra-hard PCD cutting edges slice through metal with low cutting forces, resulting in:

• Reduced vibration
• Minimal burr formation
• Excellent dimensional repeatability

Because PCD has extremely low friction coefficients, it also generates less heat, preserving both tool integrity and workpiece stability.

4. Key Advantages of PCD Guide Bar Reamers

• Exceptional Tool Life – 10–20× longer than carbide
• Superior Surface Finish – Mirror-like hole walls
• High Dimensional Stability – Ideal for mass production
• Lower Total Cost – Fewer tool changes and downtime
• Excellent Wear Resistance – Perfect for abrasive materials

5. PCD vs Carbide Reamers: A Detailed Comparison

6. Materials Suitable for PCD Guide Bar Reaming

PCD guide bar reamers are ideal for machining:

• High-carbon steel
• Alloy steel
• Sintered metals
• Non-ferrous metals
• Composite materials

They are especially effective in materials with high abrasiveness where carbide tools fail prematurely.

7. Structural Design Features of High-Quality PCD Reamers

A premium PCD guide bar reamer typically features:

• Precisely brazed or laser-welded PCD inserts
• Optimized flute geometry for chip evacuation
• High-rigidity tool body
• Custom diameter and tolerance options

Manufacturers like Wangdefu focus on tight quality control to ensure every reamer delivers consistent performance from the first hole to the last.

8. Typical Applications in Guide Bar Manufacturing

• Chainsaw guide bar oil holes
• Mounting and alignment holes
• High-precision sliding groove components
• Automated CNC production lines

9. How to Choose the Right PCD Guide Bar Reamer

When selecting a PCD guide bar reamer, consider:

1. Hole diameter and tolerance requirements
2. Workpiece material
3. Production volume
4. Machine rigidity and spindle speed
5. Custom vs standard tooling needs

10. FAQs About PCD Guide Bar Reamers

Q1: How long does a PCD guide bar reamer last?

Depending on material and cutting conditions, PCD reamers can last up to 20 times longer than carbide tools.

Q2: Can PCD guide bar reamers be customized?

Yes. Diameter, tolerance, flute design, and coating options can be tailored to specific applications.

Q3: Are PCD reamers suitable for high-speed machining?

Absolutely. PCD excels in high-speed, high-volume production environments.

Q4: Is the initial cost higher?

While the upfront cost is higher, the overall cost per hole is significantly lower due to extended tool life.

If you are looking for reliable, high-precision PCD Guide Bar Reamer solutions that enhance productivity and reduce long-term machining costs, Wangdefu offers professional expertise and customized tooling services. Contact us today to discuss your application and find the right solution for your production line.
