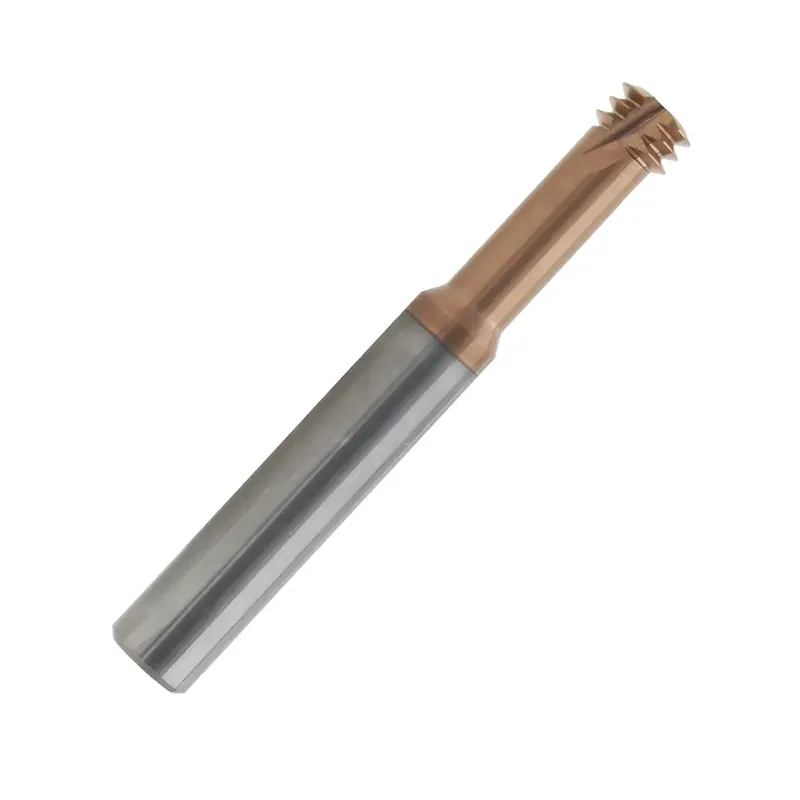

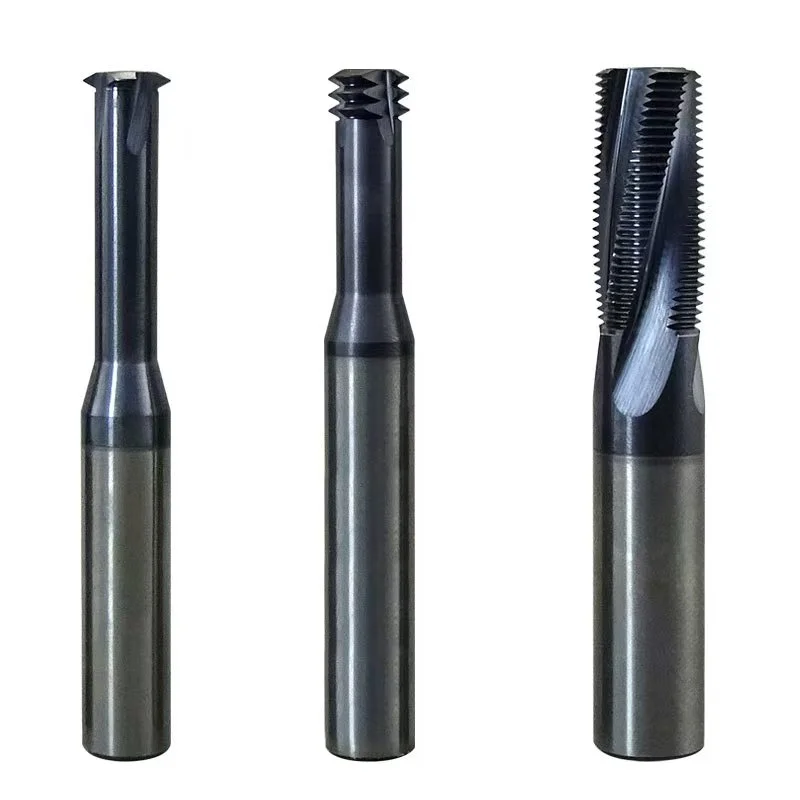

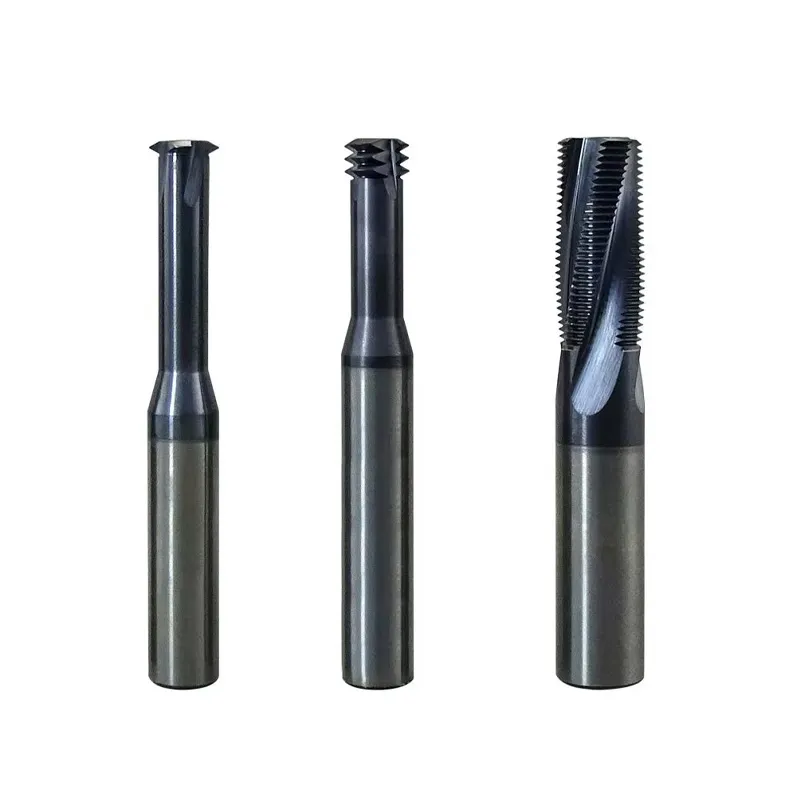

Carbide Thread Milling Cutters

At Wangdefu, our Newest Carbide Thread Milling Cutters are designed to solve the common challenges in internal and external thread machining. Unlike traditional taps or dies, our cutters:

Achieve high accuracy and surface finish even on difficult materials

Reduce breakage risk, ensuring lower scrap rates

Increase machining efficiency by over 30% compared to conventional methods

They are perfect for machining threads in steel, stainless steel, titanium alloys, aluminum, and high-temperature alloys. Whether it’s blind holes, through holes, left-hand or right-hand threads, our cutters deliver consistent, high-quality results.

What are the features of this product?

Ultra-Hard Carbide + Advanced Coatings

Carbide Thread Milling Cutters are made from ultra-fine grain carbide (HRA92+), offering wear resistance and impact resistance.

Optional coatings like TiAlN, TiSiN, Naco improve hardness up to 4300HV and reduce friction to 0.25

Can withstand high temperatures up to 1000℃, suitable for tough materials

Optimized Multi-Flute Design

3–4 flute cutters ensure uniform cutting forces and vibration resistance

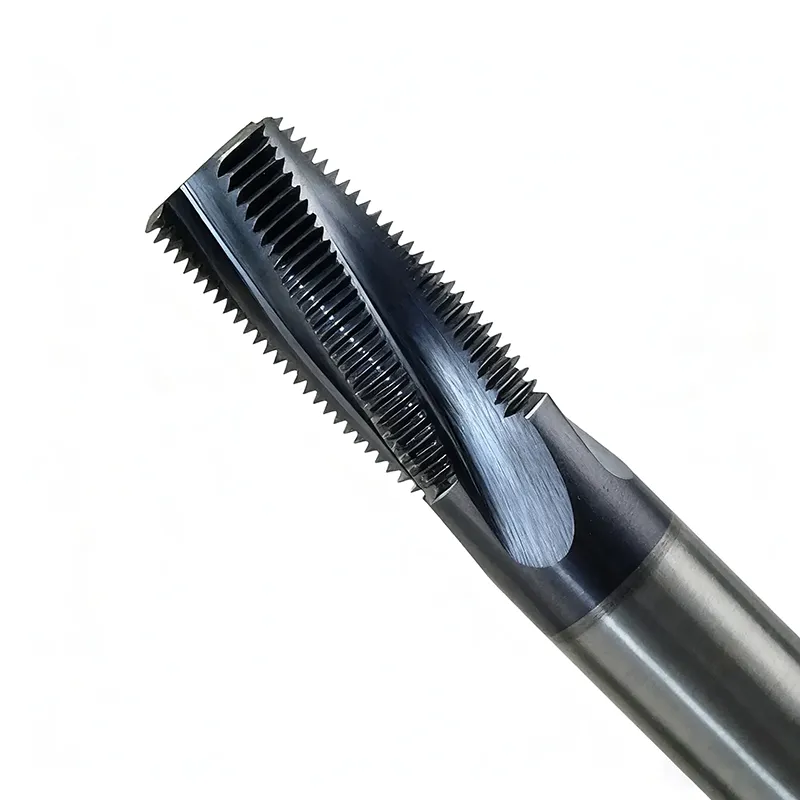

Supports straight flutes for strength or spiral flutes for efficient chip evacuation

Versatile & Cost-Effective

One cutter handles left/right-hand threads, internal/external threads

Compatible with CNC machines and lathes, supporting metric and imperial threads

Safer than traditional taps; broken cutters can be removed easily

High Precision & Ready-to-Use Threads

Five-axis precision grinding ensures perfect thread profiles

High cutting speed (80–200m/min) and burr-free threads

Eliminates secondary finishing, saving time and cost

Technical Specifications

Recommended Cutting Parameters

Notes: For blind holes, leave 1–2 thread pitches as safety distance; use circular spiral entry to reduce stress; adjust pilot hole diameter according to “thread nominal diameter – (1–1.0825) × pitch”. Use specialized cutting fluid for hard materials to prolong tool life.

Quality & Certification

German TUV-certified production system

Multiple patents in thread milling technology

Precision inspection using CMM, five-axis centers, and dynamic balancers

100% inspection of thread accuracy and surface finish

Packaging & Shipping

Protective individual packaging for each cutter

Batch or custom kits for production needs

Fast delivery worldwide from our China factory

After-Sales Service

Step-by-step installation and usage guidance (video/manual)

12-month warranty with repair/replacement options

Technical support for thread parameter optimization

Why  Choose Wangdefu?

Trusted China Manufacturer, Supplier, Factory for high-precision Quality Carbide Thread milling cutters

Rapid prototyping and mass production support with delivery within 24 hours

Serving automotive, aerospace, mold, and machinery industries

Customizable cutter diameter, flute design, coatings, and internal coolant channels

FAQ

Q1: Can the diameter or thread type of Carbide Thread milling cutters be customized?

A1: Yes, we produce according to your drawings or samples.

Q2: What materials are compatible?

A2: Steel, stainless steel, titanium, aluminum, high-temperature alloys, and non-ferrous metals.

Q3: What is the lifespan of Carbide Thread milling cutters?

A3: Depending on the material and cutting conditions, 3-5 times longer than conventional taps.

Q4: Is installation support provided?

A4: Yes, we provide detailed manuals and video instructions.
