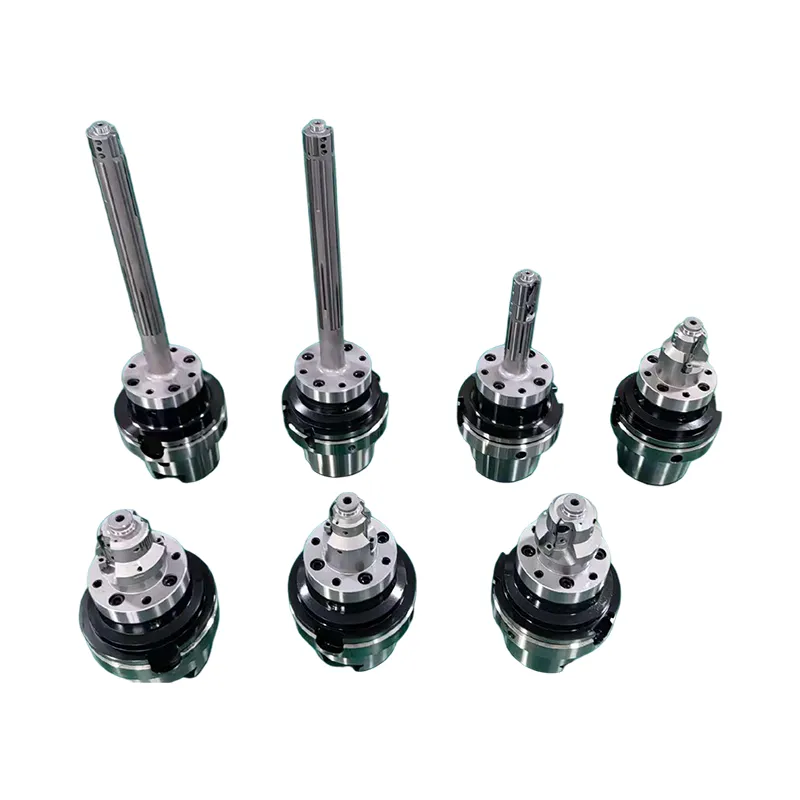

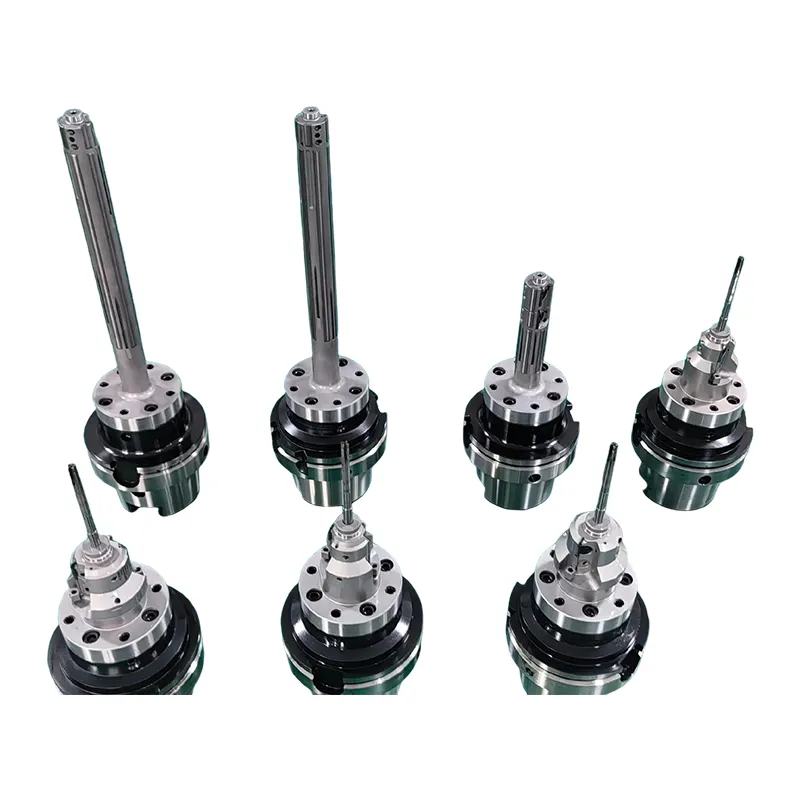

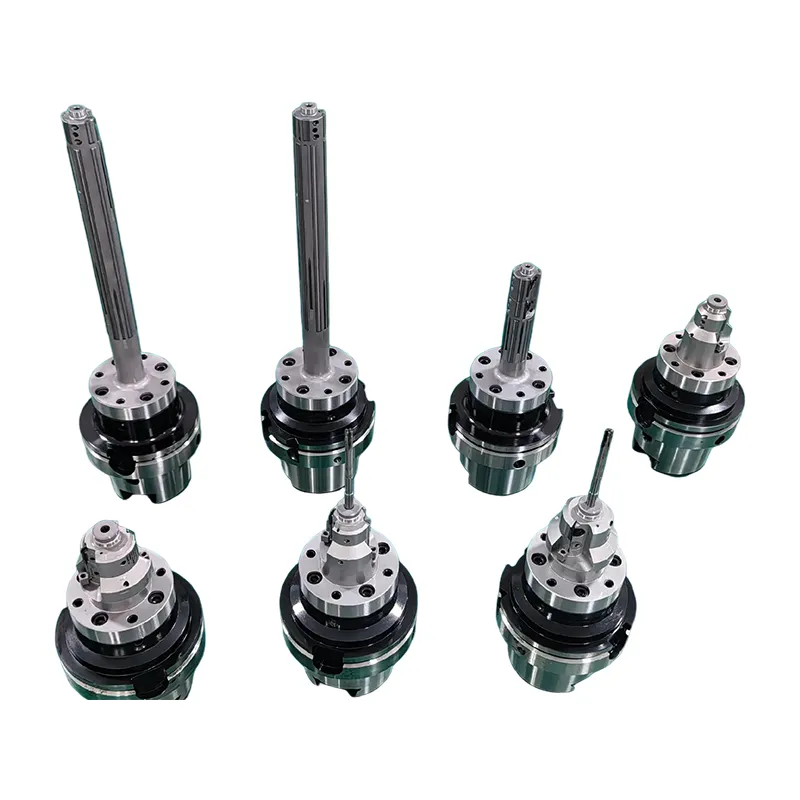

PCD Guide Bar Reamer
A leading China manufacturer and supplier, Wangdefu's PCD guide bar reamer combines an ultra-hard polycrystalline diamond cutting edge with a precision diamond guide bar, achieving IT5-IT6 tolerances and a mirror-like surface finish of Ra0.1-0.4μm. Specifically designed for machining large-diameter, long overhanging holes in non-ferrous metals and composite materials, it offers consistent accuracy, burr-free surfaces, and high throughput efficiency.
At Wangdefu, we understand the challenges of machining large, deep holes with high accuracy. Our Quality PCD Guide Bar Reamers are engineered to provide:
High straightness and roundness for L/D ratios up to 20
Mirror-finish hole walls without secondary polishing
Consistent performance for repetitive high-volume production
These reamers are ideal for materials like high-silicon aluminum, magnesium, carbon fiber composites, graphite, ceramics, and sapphire.
Why Choose Wangdefu
PCD Cutting + Diamond Guide Bars
Ensures minimal runout (≤0.002mm) and excellent support for long-overhang applications
Maintains precision under heavy-duty machining
Low Friction & Burr-Free
Prevents built-up edge and sticking on non-ferrous metals
Laser-ground, mirror-polished edges achieve Ra0.1–0.4μm
Robust Body & Modular Design
High-strength carbide base with replaceable inserts
Reduces long-term costs and allows high-speed operations
Customizable & Versatile
Diameter range φ15–φ250mm, straight or spiral flutes
Optional high-pressure internal coolant channels for deep or composite holes
Technical Specifications
|
Parameter Type |
Specification Range |
|
Tool Type |
Solid, Modular, Composite PCD guide bar reamer |
|
Base Material |
High-strength carbide |
|
Cutting Edge / Guide Bar |
Polycrystalline Diamond (PCD) |
|
Hole Diameter |
φ15–φ250mm (customizable) |
|
L/D Ratio |
≤20 |
|
Shank Type |
Straight (h5), HSK, Flange, Custom |
|
Accuracy |
IT5–IT6 |
|
Surface Roughness |
Ra0.1–0.4μm |
|
Compatible Materials |
Aluminum alloys, Mg alloys, composites, graphite, ceramics, sapphire |
Typical Applications
New Energy Vehicles: φ80mm motor housing holes, ±0.002mm tolerance, 4000+ holes per tool.
Aerospace: Carbon fiber landing gear holes, coaxiality ≤0.005mm, 60% faster than conventional reamers.
Precision Machinery: Motorcycle deep holes (L/D 10:1), Ra0.2μm, burr-free, perfectly aligned.
Recommended Cutting Parameters
|
Material |
Reamer Type |
Cutting Speed (Vc) |
Feed Rate (f) |
|
6061 Aluminum Alloy |
Solid PCD |
250–400 m/min |
0.2–0.6 mm/r |
|
High-Silicon Aluminum (>12%) |
Modular PCD |
180–300 m/min |
0.15–0.3 mm/r |
|
Carbon Fiber Composite |
Internal-cool PCD |
100–180 m/min |
0.1–0.2 mm/r |
|
Graphite |
Composite PCD |
350–500 m/min |
0.3–0.8 mm/r |
Note: Pre-reaming allowance 0.05–0.1mm; use cutting fluid and calibrate long-overhang tools for best results.
Quality & Certification
German TUV-certified production system
Multiple invention & utility patents for PCD tooling
Advanced inspection: CMM, dynamic balancers, five-axis machining centers
100% dimensional and surface finish inspection
Packaging & Shipping
Individual protective packaging
Batch and kit options
Worldwide delivery from our China factory
After-Sales Support
Installation guides via video or illustrated manuals
12-month warranty and repair/replacement for defects
13-Technical support for process optimization and setup
Why Wangdefu?
Trusted China Manufacturer, Supplier, Factory for Durable PCD guide bar reamer
Rapid prototyping and mass production support, delivery within 24 hours
Serving automotive, aerospace, and high-end machinery industries
Customizable diameters, flutes, coatings, and coolant channels
FAQ
Q1: Can the diameter and L/D ratio of the PCD guide bar reamer be customized?
A1: Yes, we can produce according to your drawings or samples.
Q2: What materials are compatible?
A2: Aluminum alloy, magnesium alloy, composite materials, graphite, ceramics, sapphire, etc.
Q3: What is the lifespan of the PCD guide bar reamer?
A3: 3-5 times longer than standard carbide reamers, depending on the material and machining conditions.
Q4: Is installation support provided?
A4: Comprehensive installation guidance is provided, including videos and manuals.
