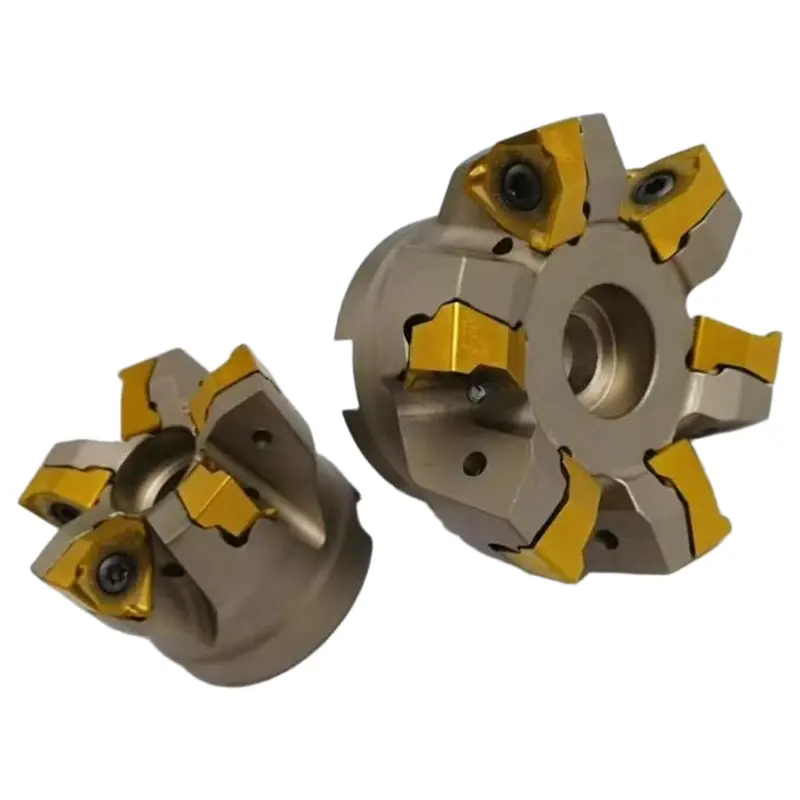

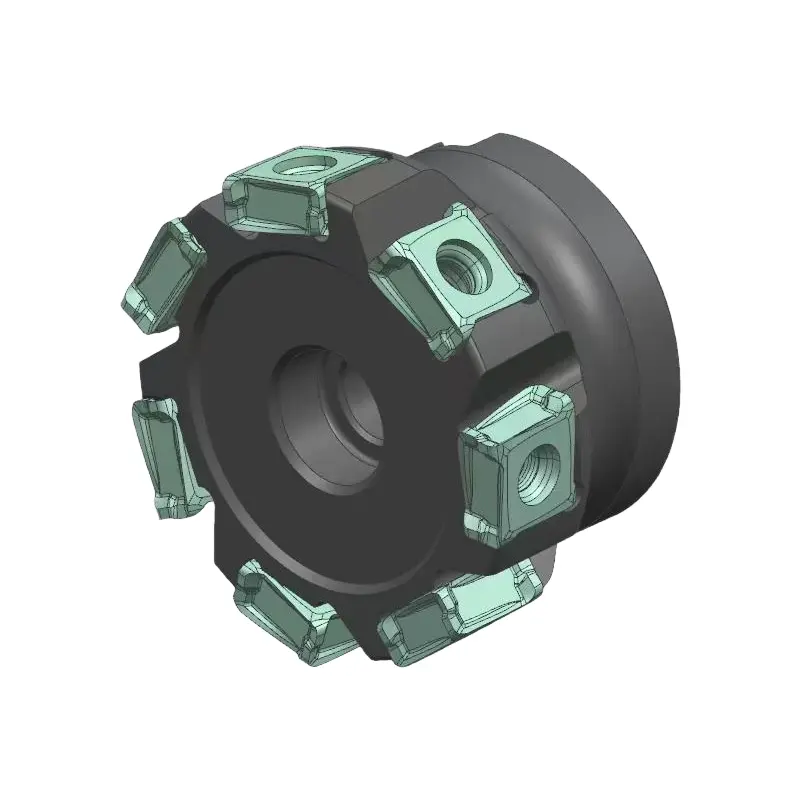

Right-Angle Plane Milling Cutter

Durable Right-Angle Plane Milling Cutters from Wangdefu are professional tools for workpiece end-face, plane machining, and precision cutting. As a reliable China manufacturer and supplier with factory-level production, we combine years of machining experience with CNC technology to deliver stable, efficient, and high-volume solutions.

Core Technology Advantages

90° Precision Design + Reinforced Structure for Rigidity and Accuracy

Wangdefu right-angle end mills feature strictly controlled 90° main angles, ensuring shoulder perpendicularity ≤30μm and flatness ≤0.008mm for sharp right-angle contours. The tool body is made of high-strength alloy steel, fully forged and heat-treated, with dovetail-style insert locking for precise positioning and wide clamping surfaces. This significantly enhances rigidity and prevents tool deflection during deep cuts.

Multi-Flute Design + Optimized Geometry for Smooth Cutting

Right-Angle Plane Milling Cutters are available with 2-6 cutting edges (2-3 for roughing to improve chip removal efficiency; 4-6 for finishing to improve surface quality). Combining a 30°-45° helix angle and double positive rake angle, cutting resistance is reduced by 30%, minimizing energy consumption and vibration even under long overhang conditions. The square double-sided inserts offer 8 cutting edges, with the finishing edge achieving a mirror-smooth surface roughness Ra≤1.6μm.

Premium Substrate + Professional Coatings for Extended Life

Inserts are made of ultrafine carbide or HSS substrates, with carbide for hardness and wear resistance, suitable for steel and cast iron, and HSS for toughness and cost-efficiency. Coatings include TiAlN, TiCN, or CVD MT-TiCN+Al₂O₃, providing high-temperature resistance, anti-adhesion, and tool life 40% longer than conventional products. Compatible with multiple materials including carbon steel, stainless steel, aluminum, and cast iron.

Efficient Chip Evacuation + Flexible Compatibility

Wide, deep helical flutes ensure smooth chip flow. Supports internal/external coolant, with internal cooling rapidly removing cutting heat to maintain sharp edges. Compatible with BT, HSK, CAT spindle interfaces, suitable for CNC mills, machining centers, and automated production lines. Quick-change design reduces setup time, integrates multiple operations in a single tool, and lowers overall processing costs by 30%.

Core Product Specifications

Typical Applications

Automotive Manufacturing: Engine block side sensor mounting faces, cylinder sealing grooves. Quality Right-angle plane milling cutter enables right-angle milling and planar surfaces in one setup, achieving perpendicularity ≤0.015mm, reducing machining time by 50%, and keeping scrap rate <0.5%.

General Machinery: Step surfaces and right-angle grooves in machine beds, pump bodies, and valve bodies. Flatness ≤0.008mm, no secondary polishing required.

Mold & Structural Components: Right-angle contours in stamping dies, structural components in construction machinery. Maintains stability under interrupted cuts and deep cuts, material removal rate increased >30%.

Precision Components: Step features in electronic device housings, medical equipment right-angle structures. Sharp, burr-free edges, dimensional tolerance ±0.01mm, suitable for small-batch, multi-variant production.

Recommended Cutting Parameters

Note: Use high-rigidity clamping systems to minimize tool deflection. For thin-walled or deep cavity parts, reduce feed and depth accordingly. Adjust parameters based on machine rigidity and workpiece structure.

Why buy our Right-Angle Plane Milling Cutter?

1.High precision machining

Tool machining accuracy ≤0.001mm, ensure end flatness

High consistency of parts processed in batches, avoiding subsequent trimming

2. High efficiency cutting

Special tooth geometry design reduces cutting resistance

Increase feed speed by 25 - 40% and shorten machining cycle time

3. Long tool life

High hardness alloy material or PCD blade, high wear resistance

5 - 15 times longer life than ordinary cemented carbide

4.High stability

Helical teeth or split teeth design reduces tool vibration

Suitable for thin-walled parts and precision parts processing

5.Customizable

Support customization of tool diameter, tooth type, edge length, helix angle, cutting depth, etc.

Meet customer requirements for different parts, materials and processes

6.One-stop service

We not only provide tools, but also technical guidance, installation guidance, optimization of machining parameters and after-sales service .

Allow customers to seamlessly connect from tool selection to mass production
