What Is a Carbide Flathead Drill and Why Is It Essential for Precision Machining

A Carbide Flathead Drill is a specialized cutting tool designed to create flat-bottom holes with exceptional accuracy. Unlike conventional twist drills, it delivers superior surface finish, tighter tolerances, and improved tool life—especially in CNC and high-speed machining environments. This article explores how carbide flathead drills work, their advantages, applications, material compatibility, selection guidelines, and why manufacturers increasingly rely on them for precision engineering.

Table of Contents

• 1. What Is a Carbide Flathead Drill?
• 2. Structural Design and Working Principle
• 3. Key Advantages Over Standard Drills
• 4. Compatible Machining Materials
• 5. Industrial Applications
• 6. Carbide Flathead Drill vs Twist Drill
• 7. How to Choose the Right Carbide Flathead Drill
• 8. Best Practices for Optimal Performance
• 9. Frequently Asked Questions

1. What Is a Carbide Flathead Drill?

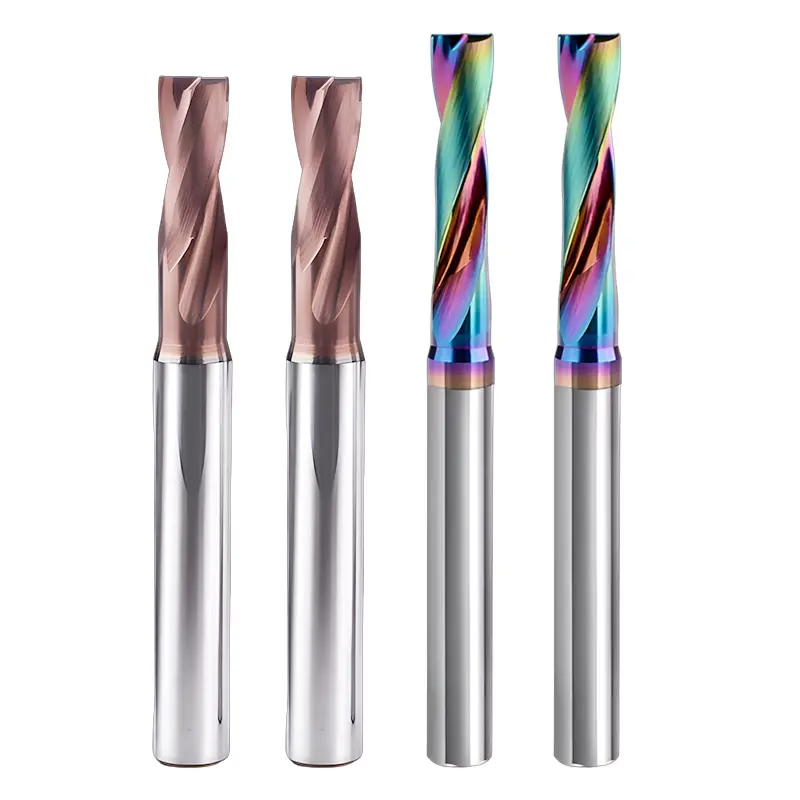

A Carbide Flathead Drill is a precision drilling tool engineered to produce flat-bottom holes rather than the conical bottoms created by traditional twist drills. Manufactured from solid tungsten carbide, it offers outstanding hardness, thermal resistance, and wear resistance.

According to industry standards and machining guidelines referenced by Wangdefu Precision Machining, flathead drills are widely used where hole depth accuracy, load-bearing surfaces, and assembly alignment are critical.

2. Structural Design and Working Principle

Key Design Features

• Flat cutting edge for true 180° bottom geometry
• Optimized flute design for efficient chip evacuation
• High-rigidity solid carbide body
• Optional coatings (TiAlN, AlTiN, DLC)

How It Works

Unlike twist drills that rely on a chisel edge, carbide flathead drills distribute cutting forces evenly across the bottom edge. This reduces tool deflection, vibration, and burr formation, resulting in cleaner and more dimensionally stable holes.

3. Key Advantages Over Standard Drills

4. Compatible Machining Materials

Carbide flathead drills are suitable for a wide range of materials:

• Carbon steel
• Stainless steel
• Aluminum alloys
• Titanium alloys
• Tool steel
• Engineering plastics

For difficult-to-machine metals, coated carbide flathead drills from suppliers like Wangdefu offer enhanced thermal stability and chip control.

5. Industrial Applications

Carbide flathead drills are widely used in industries that demand high precision:

• Aerospace – structural fastener holes
• Automotive – engine components and transmission housings
• Medical Devices – implant and surgical tool manufacturing
• Mold & Die – flat-bottom cavities
• Electronics – PCB fixtures and housings

6. Carbide Flathead Drill vs Twist Drill

7. How to Choose the Right Carbide Flathead Drill

Key Selection Factors

1. Hole diameter and depth
2. Workpiece material
3. Spindle speed and feed rate
4. Coating requirements
5. Machine rigidity

Professional manufacturers like Wangdefu offer customized carbide flathead drills to match specific CNC machining needs.

8. Best Practices for Optimal Performance

• Use appropriate coolant or MQL
• Avoid excessive peck drilling
• Maintain stable spindle speed
• Inspect tool wear regularly

9. Frequently Asked Questions (FAQ)

Q1: Can a carbide flathead drill replace an end mill?

In some flat-bottom drilling applications, yes. However, end mills are still preferred for side cutting and contouring.

Q2: Are carbide flathead drills suitable for small diameters?

Yes. Micro-diameter carbide flathead drills are commonly used in electronics and medical machining.

Q3: Do carbide flathead drills require special machines?

They perform best on CNC machines with high rigidity and precise spindle control.

Conclusion

A Carbide Flathead Drill is an indispensable tool for modern precision machining. Its ability to deliver flat-bottom holes, superior accuracy, and long tool life makes it a preferred choice across multiple industries.

If you are seeking high-quality carbide flathead drills or customized machining solutions, Wangdefu provides professional expertise, advanced manufacturing capabilities, and reliable global service.

👉 To learn more about carbide flathead drills or request a custom solution, contact us today.
