How Can CBN Inserts Transform Hard Turning Performance in Modern Precision Machining

CBN Inserts (Cubic Boron Nitride Inserts) are among the most advanced cutting tool solutions for machining hardened steel, cast iron, and other difficult-to-cut materials. As industries demand higher precision, longer tool life, and faster production speeds, CBN inserts have become essential in modern hard turning applications.

This comprehensive guide explores how CBN inserts work, their material advantages, applications, technical parameters, performance comparisons, and selection strategies. We also discuss how WDF provides reliable CBN insert solutions tailored to high-performance machining needs.

Table of Contents

• 1. What Are CBN Inserts and Why Are They Important?
• 2. What Makes Cubic Boron Nitride So Powerful?
• 3. How Do CBN Inserts Compare to Carbide Inserts?
• 4. Key Applications of CBN Inserts in Industry
• 5. Types and Grades of CBN Inserts
• 6. Cutting Parameters and Performance Optimization
• 7. How to Select the Right CBN Insert?
• 8. Why Choose WDF as Your CBN Inserts Supplier?
• 9. Frequently Asked Questions (FAQ)

1. What Are CBN Inserts and Why Are They Important?

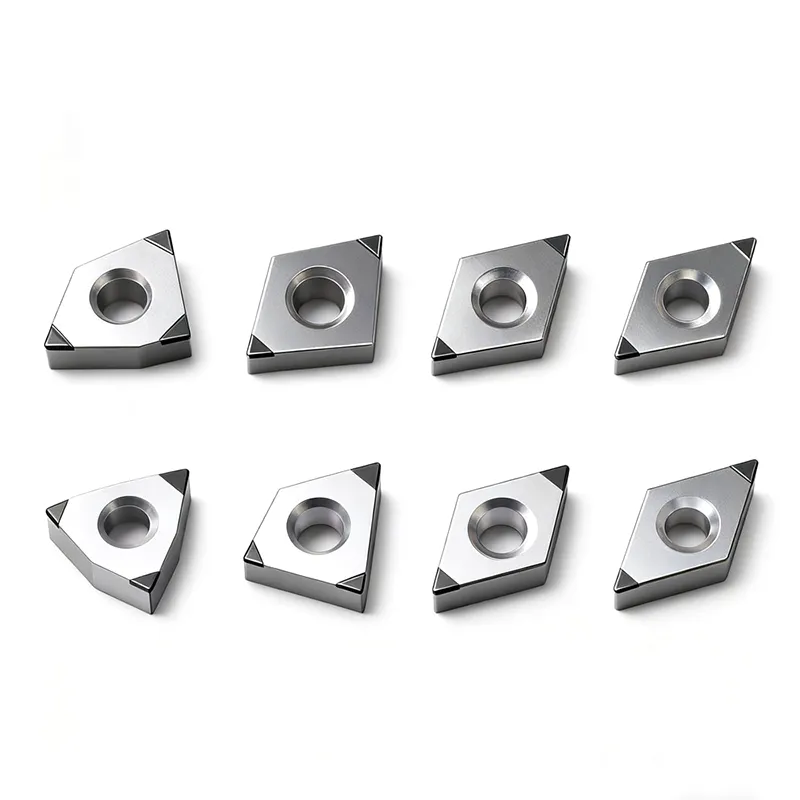

CBN Inserts are cutting tool inserts made from Cubic Boron Nitride (CBN), the second hardest material after diamond. They are specifically designed for machining hardened ferrous materials such as hardened steel (HRC 45–65), alloy steels, tool steels, and cast irons.

Unlike traditional carbide inserts, CBN inserts excel in high-speed hard turning, delivering:

• Exceptional wear resistance
• Superior thermal stability
• Outstanding surface finish quality
• Extended tool life
• Reduced need for grinding operations

In modern manufacturing, replacing grinding with hard turning using CBN inserts significantly reduces production time and operational costs.

2. What Makes Cubic Boron Nitride So Powerful?

CBN is a synthetic superhard material with unique properties that make it ideal for machining hardened ferrous materials.

Because CBN does not chemically react with ferrous materials at high temperatures (unlike diamond), it maintains cutting performance even in dry machining environments.

3. How Do CBN Inserts Compare to Carbide Inserts?

When machining hardened steel above HRC 50, carbide inserts often fail prematurely due to rapid wear and edge chipping. CBN inserts offer substantial advantages:

• Longer Tool Life: Up to 5–10 times longer than carbide in hard turning.
• Higher Cutting Speeds: Enables productivity increases.
• Better Surface Finish: Ra 0.2–0.8 μm achievable.
• Reduced Secondary Grinding: Hard turning replaces grinding.

Although CBN inserts are more expensive initially, their cost per part is often significantly lower due to extended durability.

4. Key Applications of CBN Inserts in Industry

CBN inserts are widely used in high-precision industries:

Automotive Industry

• Brake discs
• Transmission gears
• Camshafts
• Bearing components

Tool and Die Industry

• Hardened molds
• Die steels
• Tool steel finishing

Heavy Machinery

• Rollers
• Hardened shafts
• Industrial gear components

These sectors demand consistency, precision, and repeatability—qualities that CBN inserts consistently deliver.

5. Types and Grades of CBN Inserts

CBN inserts come in different compositions depending on application requirements.

Choosing the right grade depends on:

• Material hardness
• Cutting continuity
• Required surface finish
• Machine rigidity

6. Cutting Parameters and Performance Optimization

To maximize CBN insert performance, proper cutting parameters are critical.

• Cutting Speed (Vc): 100–300 m/min depending on material
• Feed Rate (f): 0.05–0.3 mm/rev
• Depth of Cut (ap): 0.1–0.5 mm for finishing
• Coolant: Often dry machining recommended

Stable machining conditions and rigid setups are essential for optimal tool life.

7. How to Select the Right CBN Insert?

Selecting the proper CBN insert requires evaluating several key factors:

• Workpiece material and hardness
• Continuous vs interrupted cutting
• Machine power and stability
• Required tolerance and surface roughness

Working with an experienced supplier ensures you choose the correct geometry, chipbreaker design, and CBN grade.

For detailed product specifications and professional guidance, you may refer to CBN Inserts solutions provided by WDF.

8. Why Choose WDF as Your CBN Inserts Supplier?

WDF specializes in high-performance precision machining solutions and offers a comprehensive range of CBN inserts designed for demanding industrial applications.

• Strict quality control standards
• Advanced manufacturing technology
• Customizable insert solutions
• Professional technical support
• Competitive pricing with high ROI

With extensive experience in precision tooling, WDF supports global manufacturers seeking reliable and cost-effective CBN insert solutions.

9. Frequently Asked Questions (FAQ)

Q1: Are CBN inserts suitable for stainless steel?

CBN inserts are primarily optimized for hardened ferrous materials. For stainless steel below HRC 45, carbide may be more economical.

Q2: Can CBN inserts replace grinding operations?

Yes. In many hard turning applications, CBN inserts can replace cylindrical grinding, reducing production time significantly.

Q3: Do CBN inserts require coolant?

Most hard turning operations with CBN inserts are performed dry to maintain thermal stability.

Q4: What hardness range is ideal for CBN inserts?

Typically HRC 45–65 hardened steel is ideal.

Q5: How long do CBN inserts last?

Tool life varies depending on material and cutting conditions, but it is often several times longer than carbide inserts.

Conclusion

CBN Inserts are transforming the landscape of modern precision machining. Their superior hardness, thermal resistance, and wear performance make them indispensable for hard turning applications. By replacing traditional grinding and carbide tooling in many scenarios, manufacturers achieve higher productivity, better surface finishes, and lower overall cost per part.

If you are looking for high-quality, reliable, and customizable CBN insert solutions, WDF is ready to support your machining needs. Upgrade your hard turning performance today — contact us to discuss your specific application requirements and discover how our CBN inserts can enhance your manufacturing efficiency.
