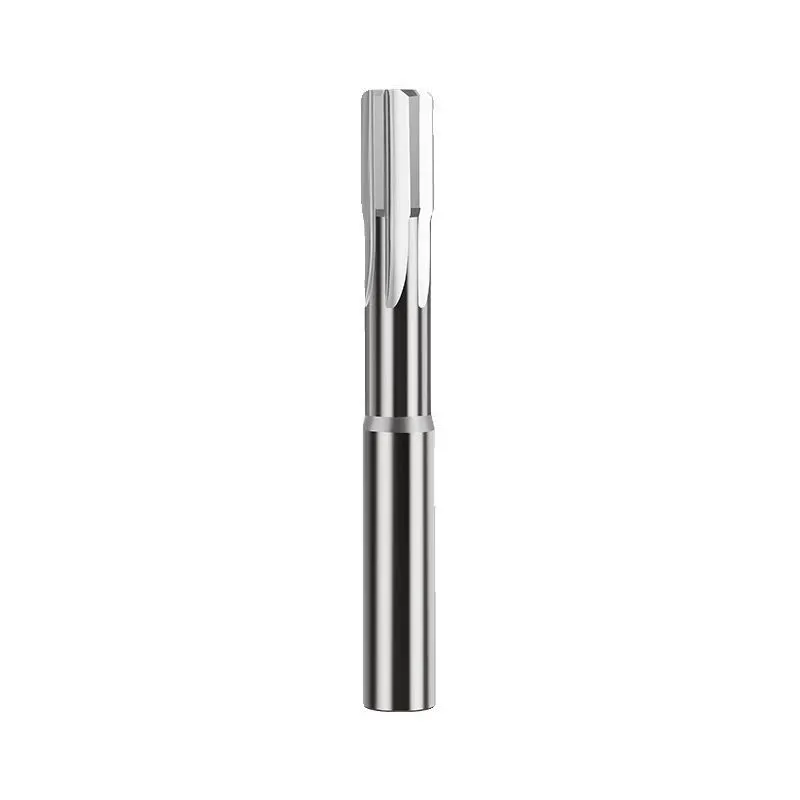

High-Performance Metal-Ceramic Reamers

Why choose WangDefu High-Performance Metal-Ceramic Reamers?

Tough & Wear-Resistant Composite Material

Made from TiC/TiN ceramic phases bonded with Ni-Co metal, sintered under high-temperature powder metallurgy.

Hardness up to HRA93, 30% more wear-resistant than conventional carbide, with bend strength ≥3200MPa.

Ideal for interrupted holes, angled holes, and long overhang conditions, maintaining hole straightness <0.01mm/100mm.

Low Affinity & Coating-Free Cutting

Extremely low chemical affinity with ferrous metals, friction coefficient ~0.1.

Prevents sticking and built-up edge when machining stainless steel or titanium.

Can be re-sharpened repeatedly without losing precision, extending tool life 3-5x longer than standard carbide reamers.

Precision Geometry & Optimized Flutes

Five-axis precision ground cutting edges, edge radius ≤0.003mm.

6–12 blades evenly spaced, reducing vibration by 50%.

Supports straight flutes (through holes) and spiral flutes (15°–30°, blind/deep holes).

Maximum deep-hole ratio L/D up to 8D without clogging.

High-Temperature Stability & High-Speed Cutting

Retains hardness and strength up to 1000°C, ideal for high-speed operations.

Optional high-pressure internal coolant (20–30MPa) for precision cooling and chip removal.

Speeds 20–50% higher than traditional carbide reamers, especially for hardened steel and superalloys.

Technical Specifications

Applications

Automotive Manufacturing:

Reaming precision bolt holes in stainless steel gearbox housings. For example: φ10mm 8-flute helical reamer, cutting speed 70m/min, feed rate 0.2mm/r, tolerance ±0.004mm, surface roughness Ra0.4μm.

Aerospace Components:

Titanium alloy landing gear bushing holes. The cermet material prevents work hardening; The Quality High-Performance Metal-Ceramic Reamers have a life exceeding 600 holes, four times that of standard carbide tools, increasing productivity by 30%.

Mold Industry:

SKD11 hardened steel guide post holes. A straight-edged 10-flute reamer completes the hole machining in one pass, with a coaxiality of 0.005mm, eliminating the need for subsequent polishing and reducing the machining cycle time by 50%.

Recommended Cutting Parameters

Note: Leave 0.08–0.15mm allowance before reaming; for blind holes, use right-hand spiral; ensure sufficient cutting fluid for high-speed operations.

Quality Assurance & Certification

German TUV production system certified

Multiple invention & utility patents for cutting tools

Advanced testing with Zeiss CMM, Zoller tool setters, and dynamic balancers

100% inspection before delivery to guarantee precision and reliability

Packaging & Shipping

Individually packaged with protective tubes for safe delivery

Optional customized kits for batch orders

Worldwide shipping from China factory via air, sea, or express courier

After-Sales Support

Installation and usage instructions via video or illustrated guides

Technical support within 48 hours for any operational issues

12-month limited warranty, with repair or replacement for manufacturing defects

Why Choose Wangdefu?

Experienced Manufacturer & Supplier in China for precision tooling

Rapid Prototype & Mass Production Support – delivery in as fast as 24 hours

High Customer Trust – serving global automotive, aerospace, and mold industries

Custom Solutions – diameter, blade number, flute design, coating, and internal coolant tailored to your needs

FAQ

Q1: Can I get prototypes in 1 day?

A1: Yes, we support rapid prototype delivery for urgent projects.

Q2: What materials can your Durable High-Performance Metal-Ceramic Reamers handle?

A2: Carbon steel, stainless steel, titanium, mold steel, cast iron, and superalloys.

Q3: Are custom diameters or flute designs available?

A3: Absolutely, we manufacture according to your drawings or samples.

Q4: How long is the tool life?

A4: Metal-ceramic reamers last 3–5x longer than standard carbide.

Q5: Do you provide technical guidance?

A5: Yes, our engineers assist with process optimization, installation, and usage.

With Wangdefu High-Performance Metal-Ceramic Reamers, you get precision, durability, and efficiency in one tool. As a trusted China manufacturer, supplier, and factory, we provide cutting-edge solutions to help your production succeed.
