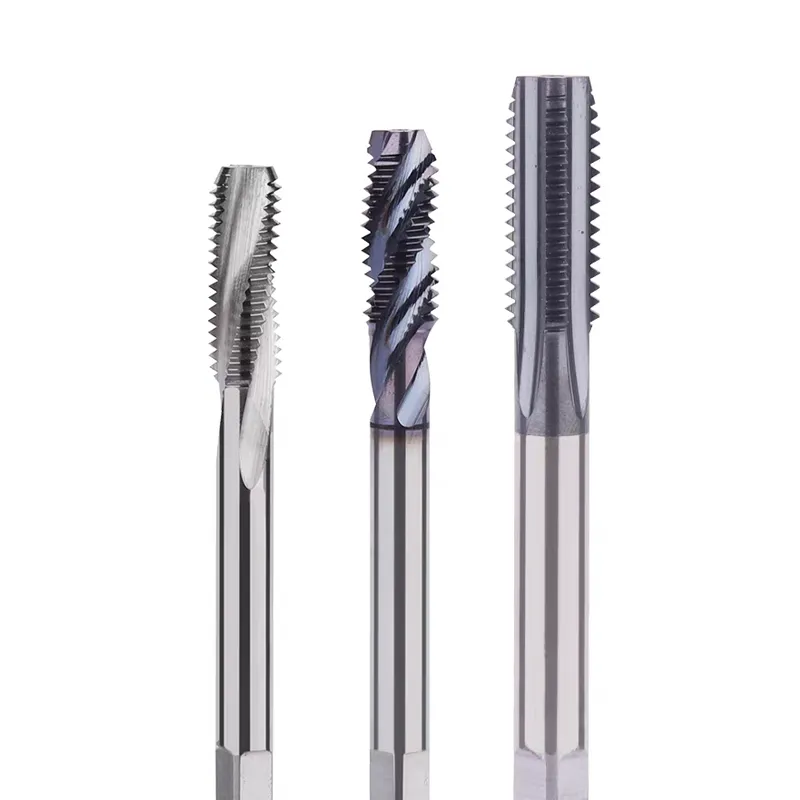

Carbide Thread Cutting Taps

What Are Carbide Thread Cutting Taps?

Carbide Thread Cutting Taps are cutting-edge tools designed for creating high-precision internal threads in metal components. Unlike conventional HSS taps, Wangdefu’s Quality Carbide Thread Cutting Taps combine ultra-hard carbide cores with optimized flutes and coatings to deliver:

Stable thread dimensions across batches

Burr-free and smooth thread surfaces

Reduced risk of tap breakage

Faster threading for high-volume production

These taps are ideal for use in automotive engine blocks, mold cavities, aerospace components, and precision mechanical parts.

Key Advantages

Ultra-Hard Core + Coatings Our Durable Carbide Thread Cutting Taps use ultra-fine WC-Co carbide with hardness up to HRA91, combined with optional TiAlN, TiCN, or CrN coatings. This enhances wear resistance and reduces friction, extending tool life 3–5x compared to uncoated taps.

Optimized Flute Design Spiral or straight flutes improve chip evacuation. Spiral flutes excel in blind holes, straight flutes provide rigidity for through-holes. Five-axis grinding ensures burr-free threads with reduced cutting resistance.

Precise Guiding Tapered lead sections ensure accurate centering, and shank tolerances (h6) maintain stable clamping. This provides consistent thread pitch even in batch production.

Versatile and Cost-Effective Metric, imperial, and US thread sizes are covered. The taps work on CNC lathes, machining centers, and tapping machines, reducing tool changes and lowering overall production costs.

Technical Specifications

Application Scenarios

Automotive: Engine blocks and transmission housings threaded with high-precision taps achieve 6H accuracy and can process 2000+ holes per tap.

Mold Industry: Deep blind-hole threading in mold steel benefits from high rigidity and optional internal cooling.

Aerospace: Titanium and high-temperature alloys achieve precise threads meeting aerospace standards.

Precision Machinery: Micro threads (M1–M3) are formed with high surface finish Ra ≤1.6μm.

Recommended Cutting Parameters

Notes: Leave 1.5–2x pitch safety distance for blind holes. Use specialized tapping oil for hard materials. Bottom hole diameter = nominal thread diameter – pitch (metric).

Packaging and Delivery

Individual protective packaging

Bulk or custom kits

Fast worldwide shipping from our China Factory

After-Sales Support

Manuals and video guidance for proper use

12-month warranty with repair or replacement

Technical support to optimize tapping processes

Why Choose Wangdefu?

Trusted China Manufacturer, Supplier, Factory for high-precision threads

Rapid prototyping and mass production, delivery in 24 hours

Customizable sizes, coatings, flute types, and internal cooling

Proven reliability in automotive, mold, aerospace, and precision machinery sectors

FAQ

Q: Can you make non-standard thread sizes?

A: Yes, Wangdefu Quality Carbide Thread Cutting Taps can be fully customized per your drawings or samples.

Q: Which materials are compatible?

A: Carbon steel, alloy steel, stainless steel, mold steel, cast iron, aluminum, and high-strength alloys.

Q: How long do the taps last?

A: Life is 3–5x longer than HSS taps depending on cutting conditions.

Q: Do you provide installation guidance?

A: Yes, with manuals and instructional videos for all taps.
